Push the Boundaries Like Never Before

INTRODUCING THE TKI PRO SERIES ADJUSTABLE CARBON FIBER LIVE KIT

The ultimate solution for forward-facing sonar anglers who demand speed, versatility, and premium performance.

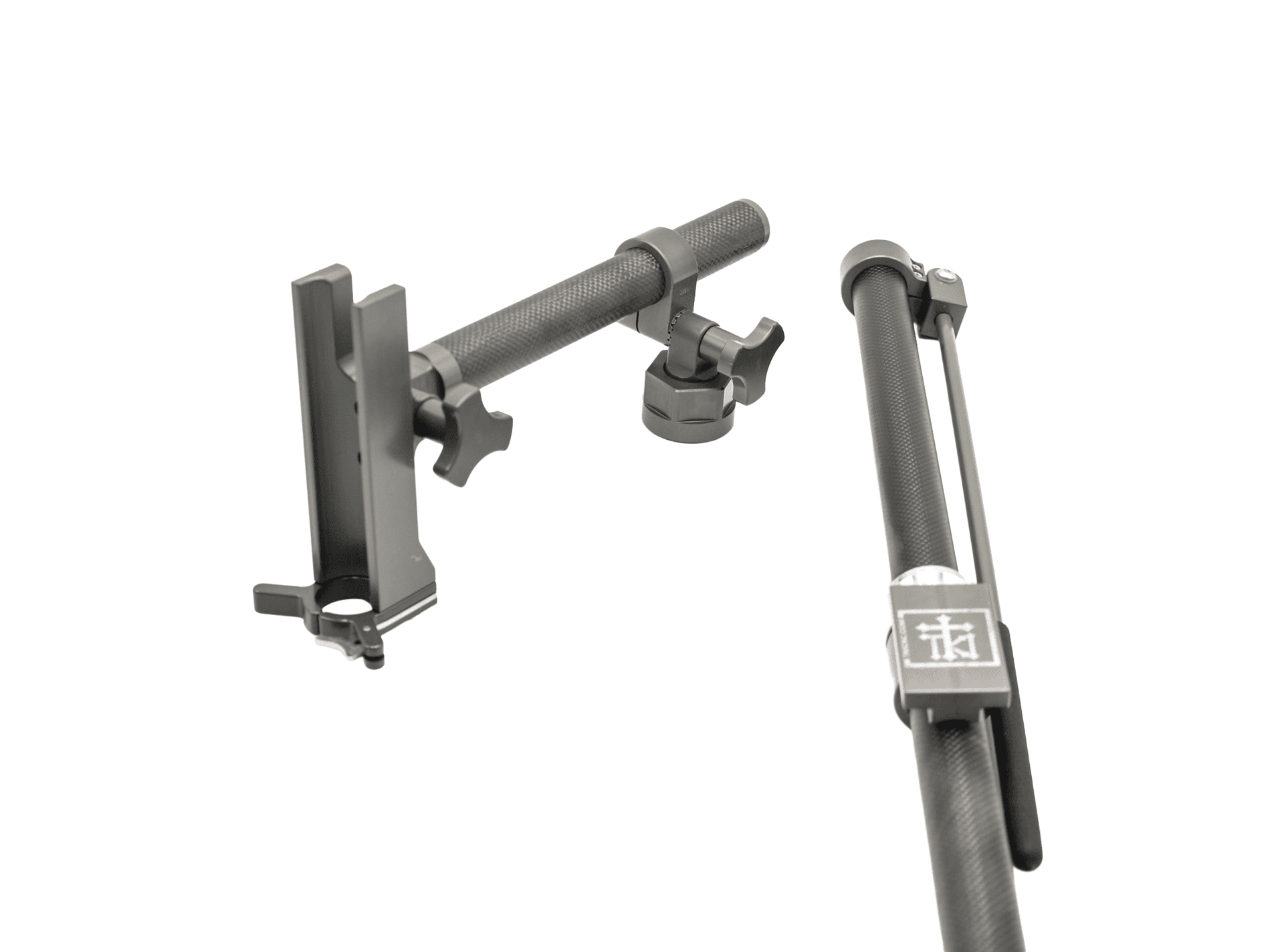

This complete live sonar kit features our new TKI PRO Series Adjustable Carbon Fiber Arm, a 72" Carbon Fiber Collapsible Live Pole with folding handle, your choice of base, and base nut wrench — everything you need for quick, secure deployment of your forward-facing sonar.

Premium Construction & Smart Design

• Lightweight Carbon Fiber Construction: The 72" live pole (1-1/4" diameter) collapses down to just under 42" for easy stowing. The transducer cord routes cleanly through the center of the pole (looped and inserted internally — no center notch required due to the collapsing design).

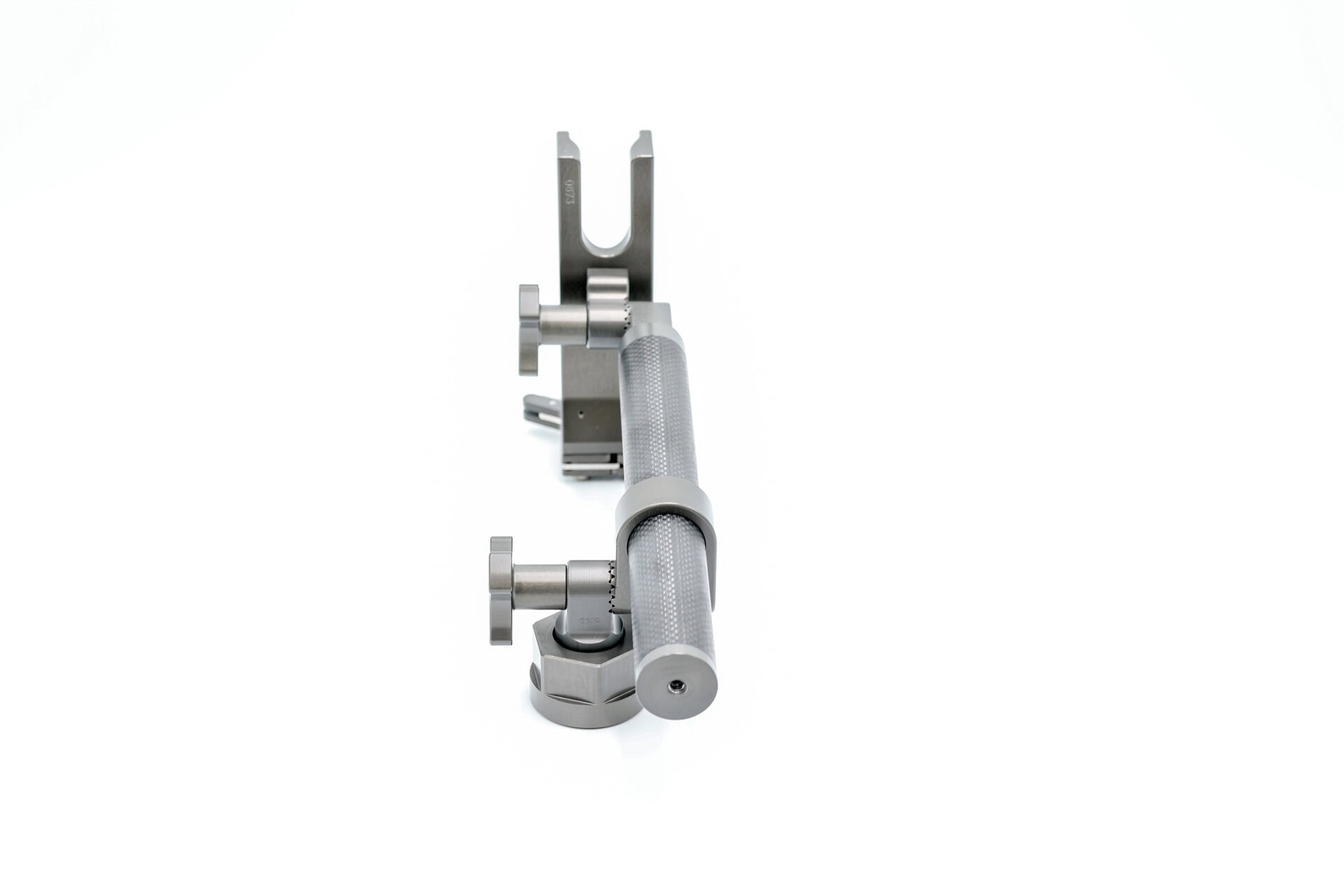

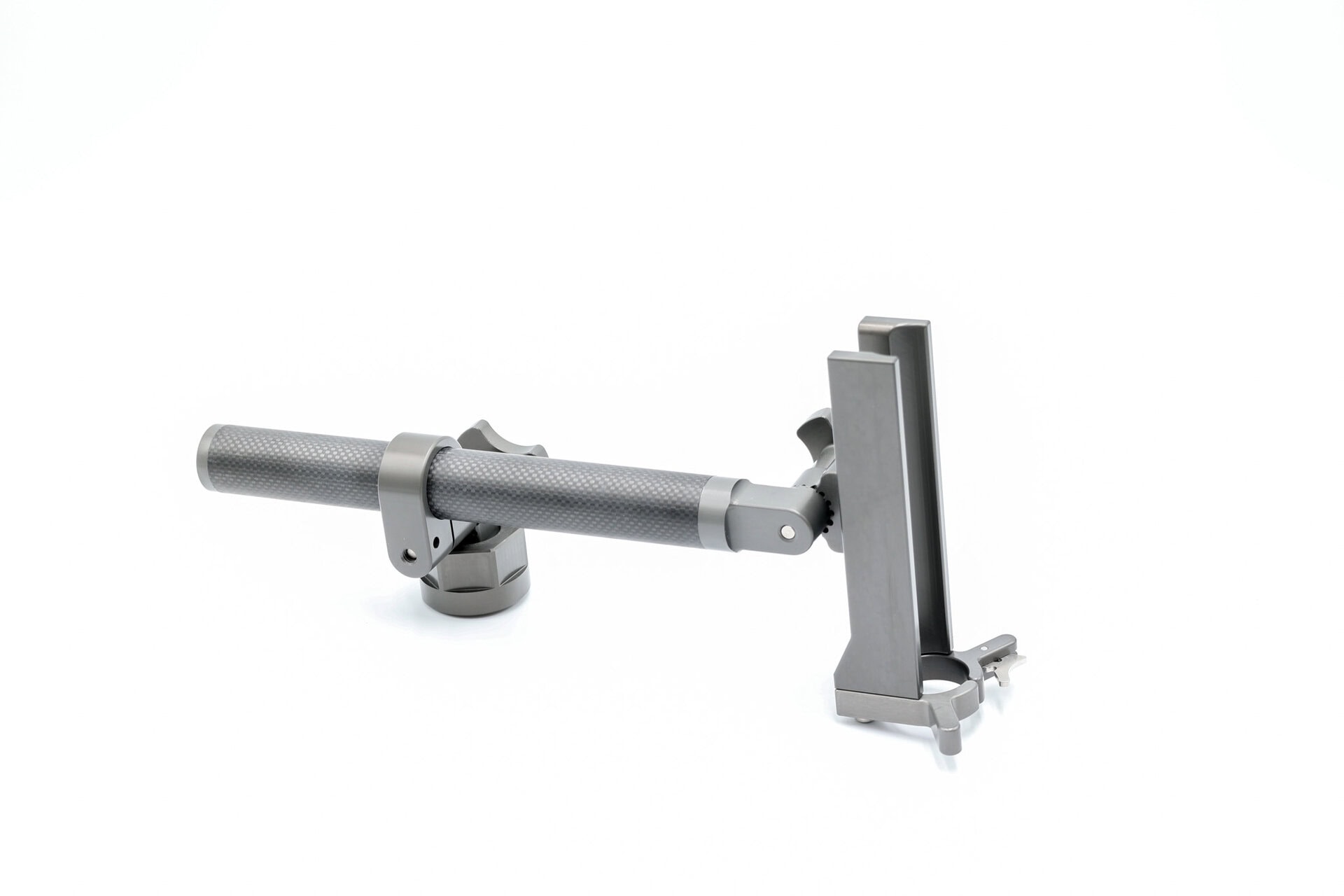

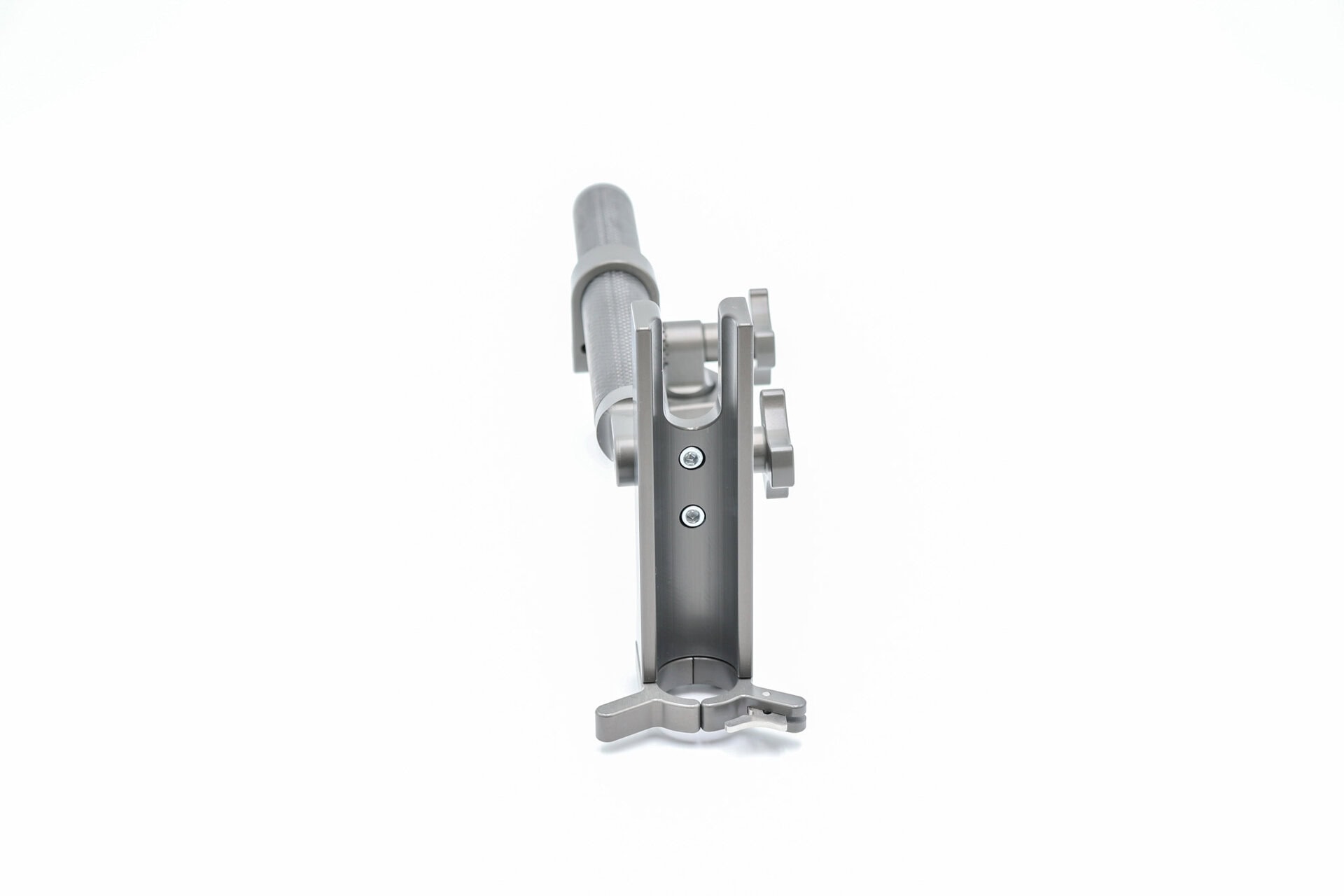

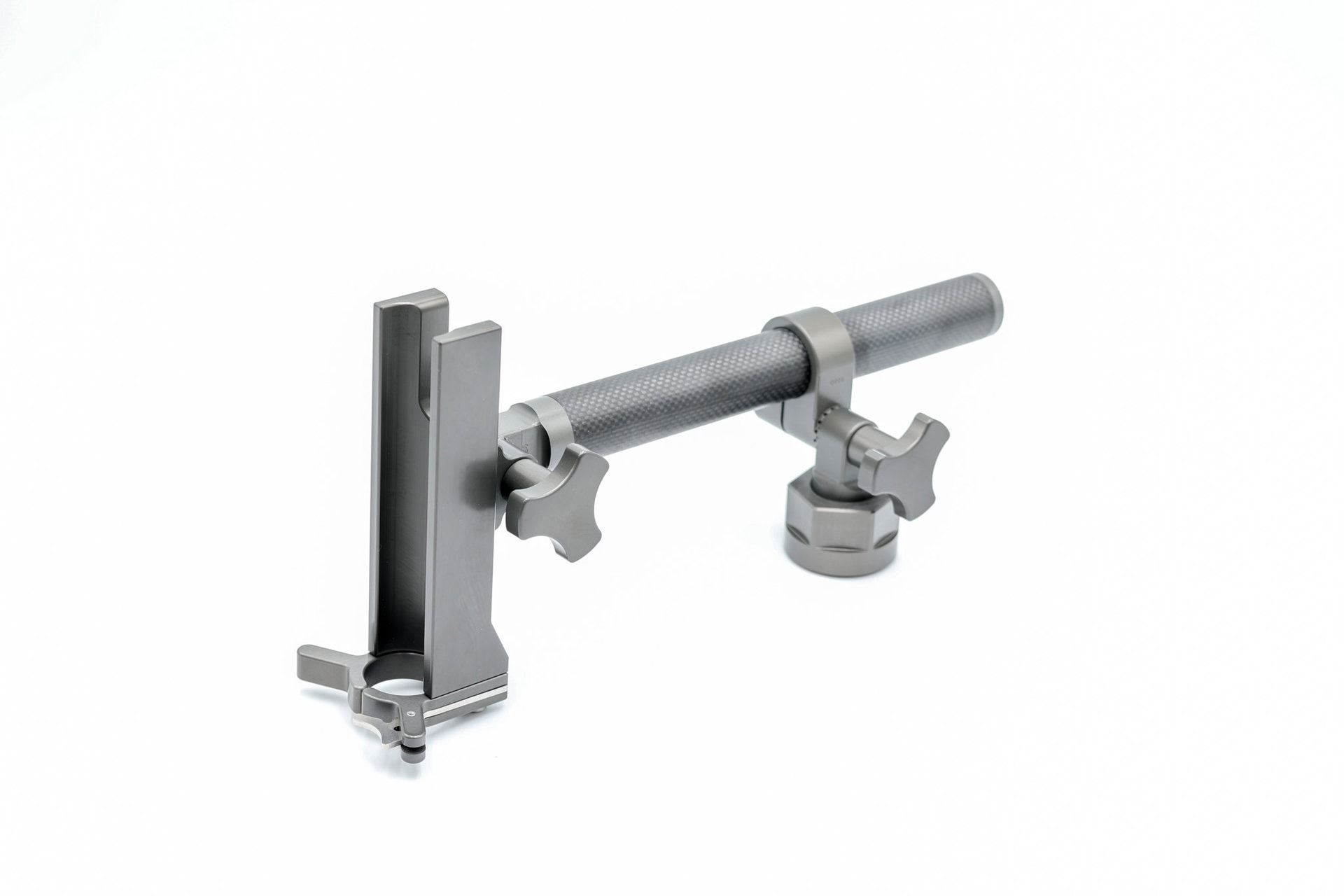

• Fully Adjustable PRO Arm: Extends from 2" to 12", making it incredibly versatile when switching between boats or positioning over the gunwale. The arm features a 3 mm (.118") carbon fiber tube and includes a drilled & tapped butt cap for adding accessories.
• Adjustable Tension: Allows the pole to rotate parallel to the gunwale and provides controlled breakaway protection — if the transducer strikes an underwater obstruction, the arm can swing safely out of the way (by slightly loosening the lower knob).
• TKI Folding Handle: Makes stowing fast and convenient. All handles are 18" long and can be easily cut to your preferred length.
• Premium Billet Aluminum Construction: All bases and cradle components are precision-machined from US manufactured billet aluminum.

Fast Deploy & Stow

Mount your forward-facing sonar — Humminbird Mega Live 2, Lowrance Active Target, or Garmin Panoptix LiveScope — directly onto any TKI CNC Billet Cradle Assembly.

Release the trigger, lift the live pole out, collapse it, and stow it in seconds. The entire process takes under 10 seconds, giving you unmatched mobility when moving from spot to spot.

Important Note: TKI does not recommend traveling with the live pole and transducer deployed outside the boat in rough water or for long distances.

Cradle Assembly Options

Choose the cradle style that best fits your needs:

• PRO R Series — Full rod holder cradle with notches and grooves designed to securely hold baitcasting and spinning reels.
• PRO S Series — Shortened cradle optimized specifically for the sonar live kit (can still hold a rod, but without reel-specific notches).

Adjustable Arm Length Recommendation

For best performance, we recommend keeping the arm extension no more than 0.5–1" longer than the measured distance to minimize flex at higher trolling speeds. (While not recommended for extended use, the system is capable of handling trolling speeds of 10+ mph.)

Rod Holder Base Options

Every kit includes one base of your choice (please confirm your rail size before ordering). Additional bases are available separately so you can quickly move your live sonar setup between multiple locations or boats.

Available Base Options:

• 7/8" Round Base (141)
• 1" Round Base (142)
• 1-1/16" Round Base (143)
• Flat Track Mount Base (144)
• Flat Base with Ram Rail Plate (146)
• Gunwale Track Plate with 2" Round Flat Base - TKI, Cisco, Traxtech systems (247)
• Flat Base with Alumatrac (148)
• Flat Base with Pontoon 1-1/4" Square Rail (149)
• 90° SportTrak 3" Mount with 2" Round Flat Base – Lund/Tracker (250)
• Flat Base with Wide 90° SportTrak 4" Mount (151)
• Flat Base with SeaArc Mount (152)
• Flat Base with Polar Kraft Mount (153)
• Flat Base with Rear Nitro Mount (154)
• Flat Base with 45° SportTrak Mount (155)
• 90° SportTrak 3" Mount with 2" Round Flat Base – Lund/Tracker (257)
• Universal Gunwale Mount with 2" Round Flat Base (258)

All bases and cradle components are precision-machined from billet aluminum.

Garmin Panoptix Note

For Garmin Panoptix LiveScope users: Remove the plastic nut around the plug, thread the cord through the tube, then reinstall using one of the extra snap-on plastic nuts included with your Garmin transducer. Watch installation video here

Built to Last

• Color: Graphite
• Lifetime Warranty against manufacturer defects
• Designed and Manufactured in the USA using premium American materials

Important: This kit is only compatible with the TKI CNC Billet Rod Holder system.

Elevate your forward-facing sonar game with the lightest, strongest, and most adjustable live sonar mounting system on the market — the TKI PRO Series Adjustable Carbon Fiber Live Kit.

Ready to fish harder and move faster?
